Introducing NEW Mapir LATTICE Array Cameras

LATTICE is a modular, waterproof, multispectral camera system that does something no other product on the market does: it gives you quantitative, calibrated reflectance data out of the box — with automatic calibration, automatic ambient light correction, and a complete software pipeline from raw capture to publication-ready output.

No cobbling together industrial cameras with third-party calibration workflows. No manual exposure tuning. No wondering whether your data from Tuesday is comparable to your data from last month. LATTICE handles it.

LATTICE HARDWARE

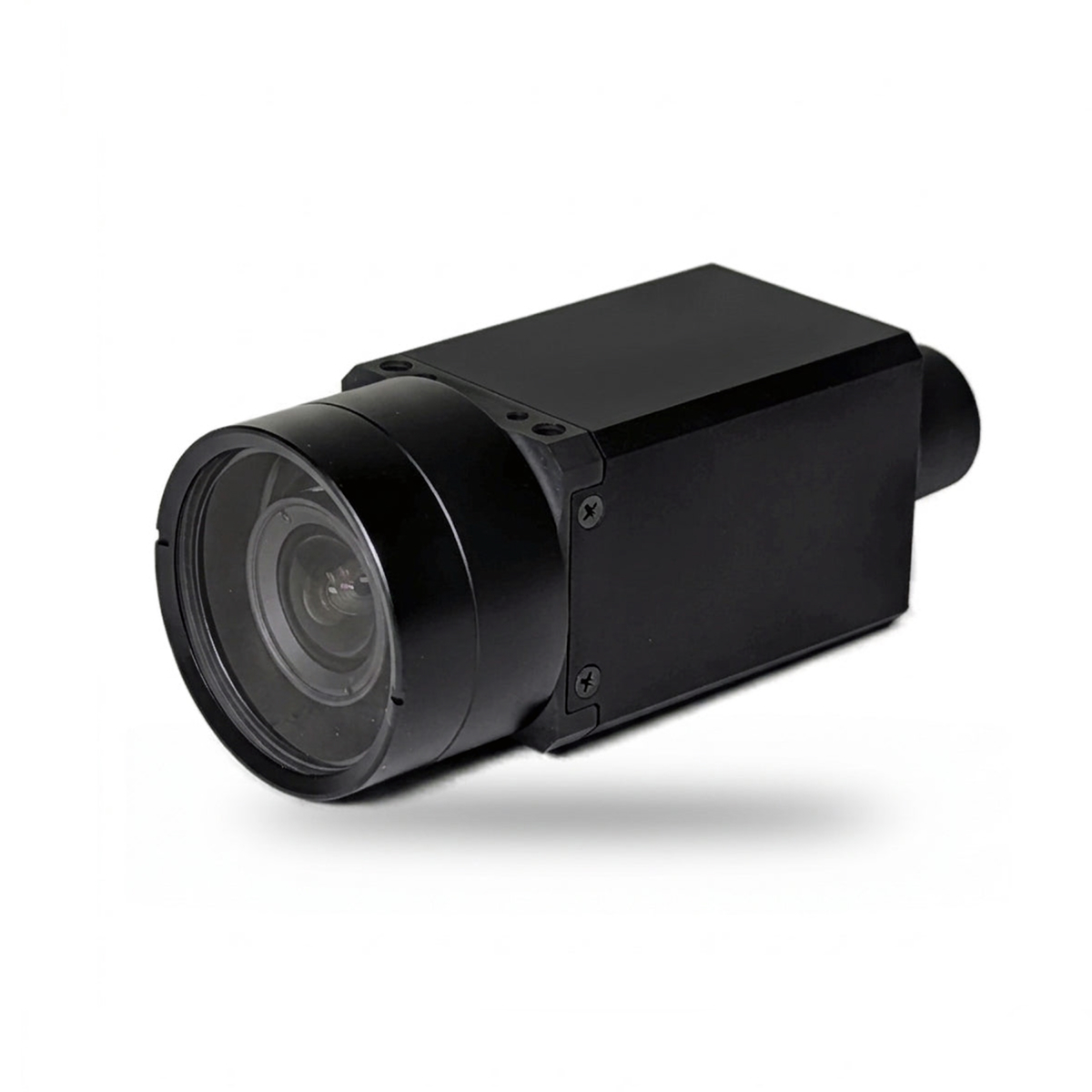

Every LATTICE module is built on a Sony IMX265 global shutter sensor — 3.2MP, up to 35 FPS, 12-bit ADC — in a 29×29×64mm, 100-gram, IP67-sealed package. One Ethernet cable carries power, data, and control via GigE Vision and PoE. No power bricks, no USB hubs, no proprietary connectors.

Choose your spectral filter: RGN, OCN, NGB, or RGB.

Choose your lens: 87° wide or 41° narrow.

Every module is the same size and field-swappable.

Modules start at below €875. Arrays start at Below €1,100 fully assembled and pre-tested.

CONTACT US for details.

BUILD YOUR SENSOR

LATTICE arrays let you combine 1 to 4 modules into a single synchronized unit — capturing up to 12 spectral bands simultaneously with less than 100μs sync between sensors.

L1: 1 module, 3 bands — €1,050+

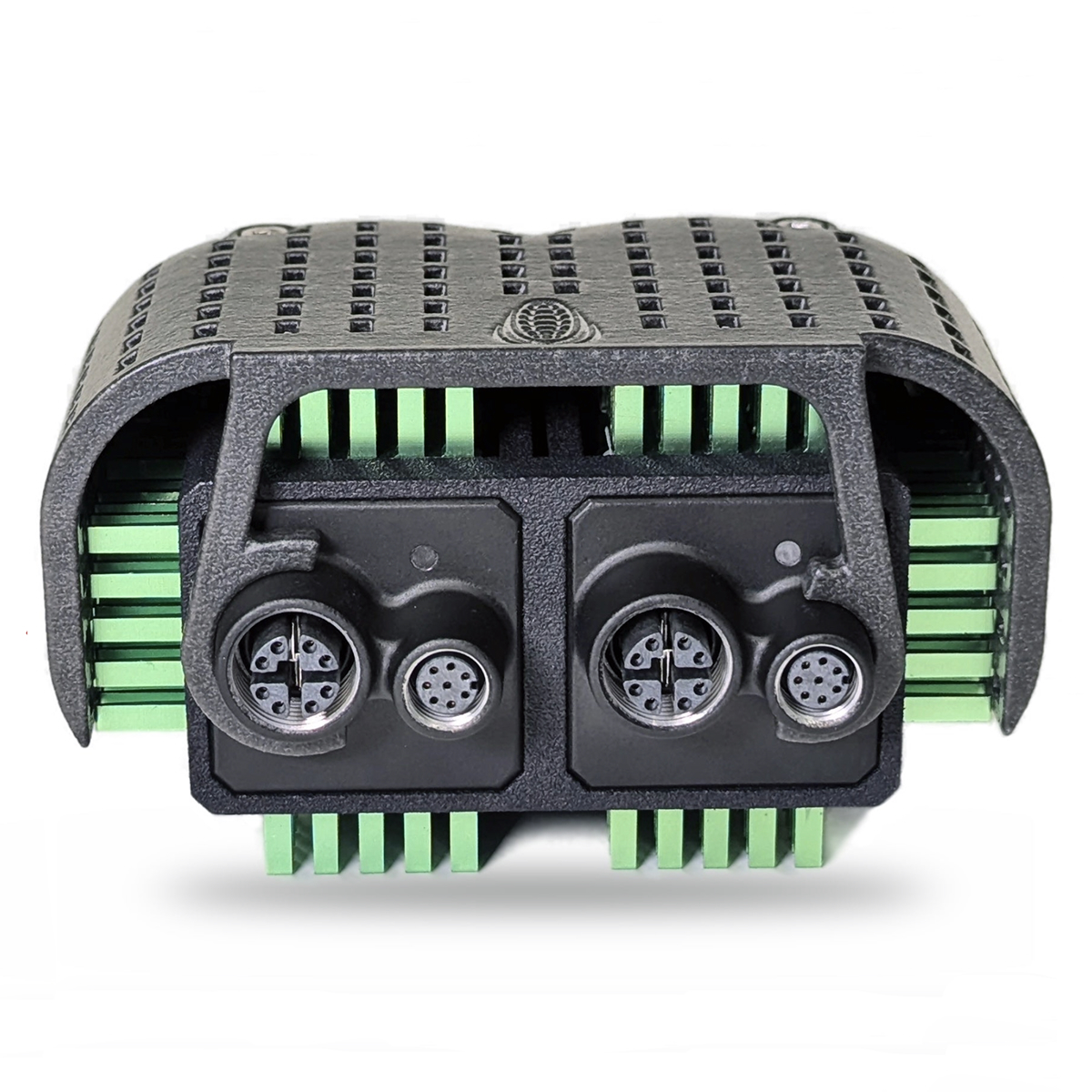

L2: 2 modules, 6 bands — €2,150+

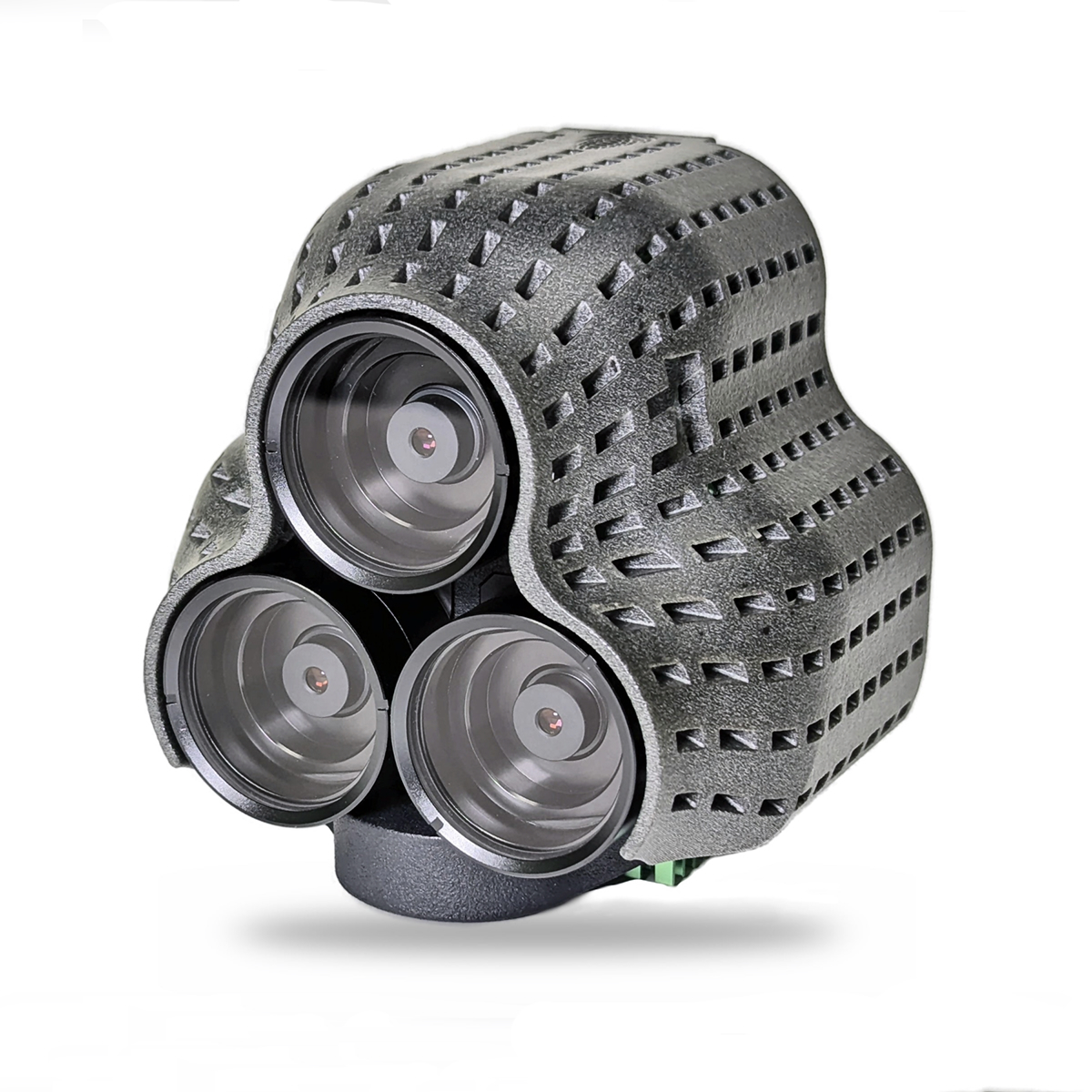

L3: 3 modules, 9 bands — €3,350+
L4: 4 modules, 12 bands — €4,250+

You pick the filters. You pick the lenses. You configure the array to match your application — and you can reconfigure it later by swapping modules.

No other multispectral camera system lets you do this.

AUTOMATIC CALIBRATION

This is where LATTICE leaves everything else on the market behind.

Point your camera at a MAPIR reflectance calibration target. Chloros detects it automatically and calibrates your data to percent reflectance — no manual math, no spreadsheets, no third-party software.

Add a MAPIR DAQ ambient light sensor to your setup. Chloros incorporates the real-time irradiance measurement into every frame’s calibration — automatically correcting for sun angle, cloud cover, and seasonal light changes outdoors, or giving you a precise spectral measurement of your artificial lighting in greenhouses, growth chambers, and labs.

THE RESULT:

Absolute reflectance data you can compare across days, seasons, facilities, and years. Not relative intensity. Not uncalibrated pixel values. Actual, traceable, quantitative reflectance.

CHLOROS: THE COMPLETE PIPELINE

LATTICE cameras ship ready to work with Chloros, our multispectral processing platform. The free Chloros desktop app supports up to 4 camera modules on Windows, with auto exposure balancing, vignette correction, white balance, band separation, and 24+ vegetation and environmental indices — NDVI, NDRE, GNDVI, EVI, SAVI, and more.

Need to go further? Chloros+ unlocks:

• GPU-accelerated processing (NVIDIA CUDA)
• Multi-threaded batch processing — up to 16 images simultaneously
• CLI and Python SDK for automated pipelines
• Native Linux support including NVIDIA Jetson edge devices
• Custom index formulas for specialized research
• Support for higher camera counts

Whether you’re processing a single monitoring station or scripting overnight batch runs across hundreds of datasets, Chloros scales with you.

BUILT TO LAST

IP67 waterproof. -20°C to 55°C operating range. DIN EN 60068 shock and vibration rated. 8kV ESD immunity. 3.1 watts via PoE. Solar 12-24V compatible. 3-year warranty.

This isn’t a lab prototype. It’s an industrial instrument that ships assembled, tested, and ready to mount.

WHO IS THIS FOR?

Precision agriculture. Environmental monitoring. Forestry. Water quality. Controlled-environment agriculture. Industrial inspection. Robotics. Drone payloads. Research.

Anyone who needs to measure how things reflect light — and needs that measurement to be accurate, repeatable, and automated.
