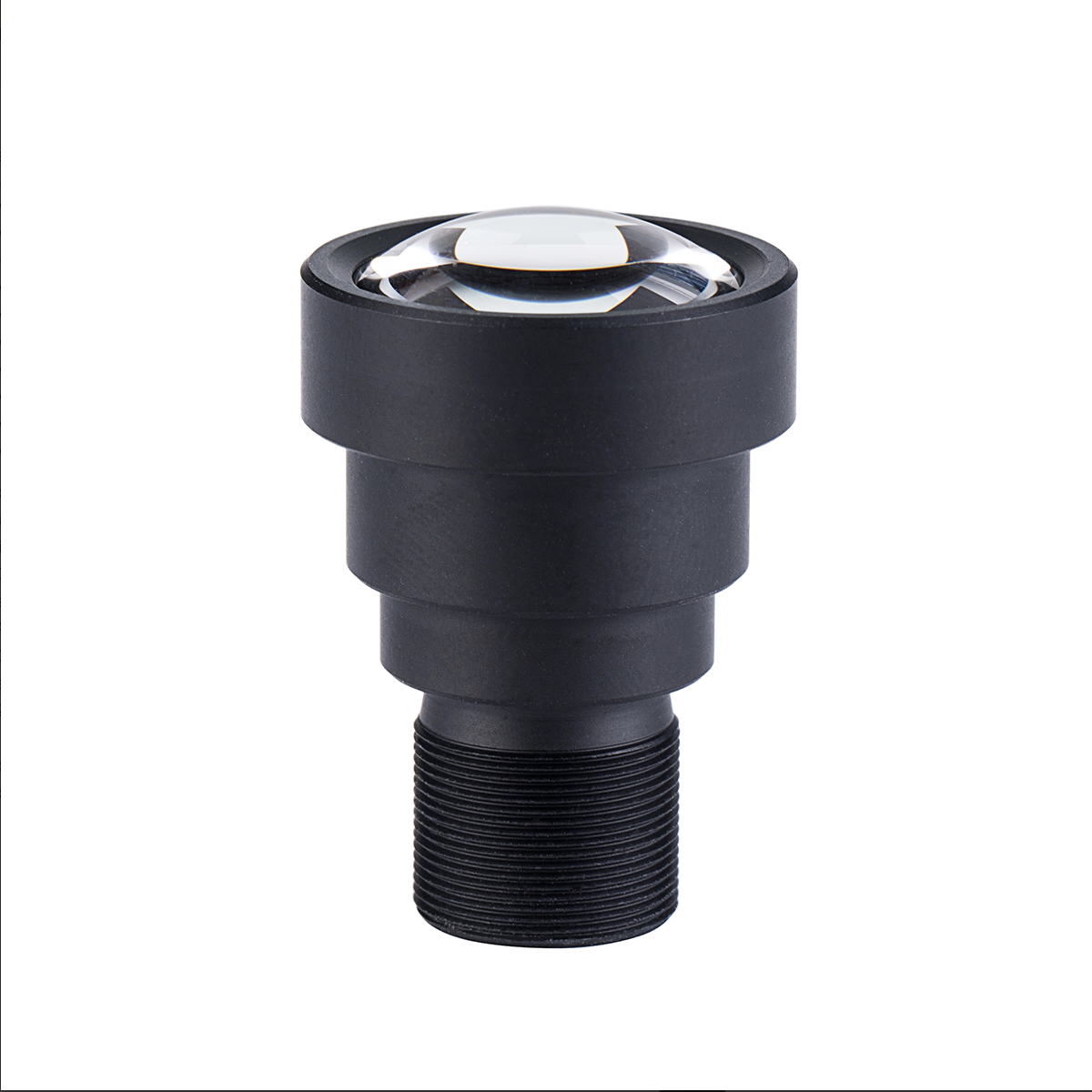

This narrow angle S-mount (M12) 12MP lens has a focal length of 50mm and fixed F2.4 iris. It achieves a 6.5° horizontal angle of view when fitted on 1/1.8″ camera sensors with distortion of <-1.0%..
The lens works well with Back-Bone modified GoPro cameras also supplied by SeeSense plus other cameras featuring and M12 (S-mount). The lens is great for general shooting as well as specialist broadcast, film and industrial applications where a telephoto view is required.
See also SS-50F2.8M12
IN STOCK
€75.00 (€92.25 including VAT)
This narrow angle S-mount (M12) 12MP lens has a focal length of 50mm. It features a 6.5° horizontal angle of view when fitted on 1/1.8″ camera sensors.
The lens works well with Back-Bone modified GoPro cameras also supplied by SeeSense plus other cameras featuring and M12 (S-mount). The lens is great for general shooting as well as specialist broadcast, film and industrial applications where a telephoto view is required. This lens has an IR cut filter fitted but is available as a No IR option.
This high quality 50mm lens has also been used in our Back-Bone compact covert deployable camera solution as well as for filming natural history documentaries or used in industrial process monitoring.
| Weight | 0.1 kg |
|---|---|
| Dimensions | 10.0 × 10.0 × 5.0 cm |
| Iris and Drive | Fixed Iris |
| Lens Type | |
| Mount | S-Mount M12 |
| Resolution | 4K, 12 MP, High Definition |
| Sensor Size | 1/2.3", 1/2.5", 1/2.7", 1/2.9", 1/2", 1/3", 1/1.8", 1/1.9" |
| Brand | |
| Industries | Film & Broadcast, General Industrial Use, Photography, Research, Medical & Education, Security & Defence |
| Focal Length | 50mm |
| Resolution | 12MP |
| Aperture | F2.4 |
| HFOV | 6.5° x 5.27° 1/1.8″ Horizontal x vertical angle of view |
| Distortion | <-1.0% |
| MOD | 0.5m |
| Filter | IR Cut Filter fitted (NoIR option available) |
| Format | Suits camera sensors up to 1/1.8″ |
| Mount | M12 (S-mount) |

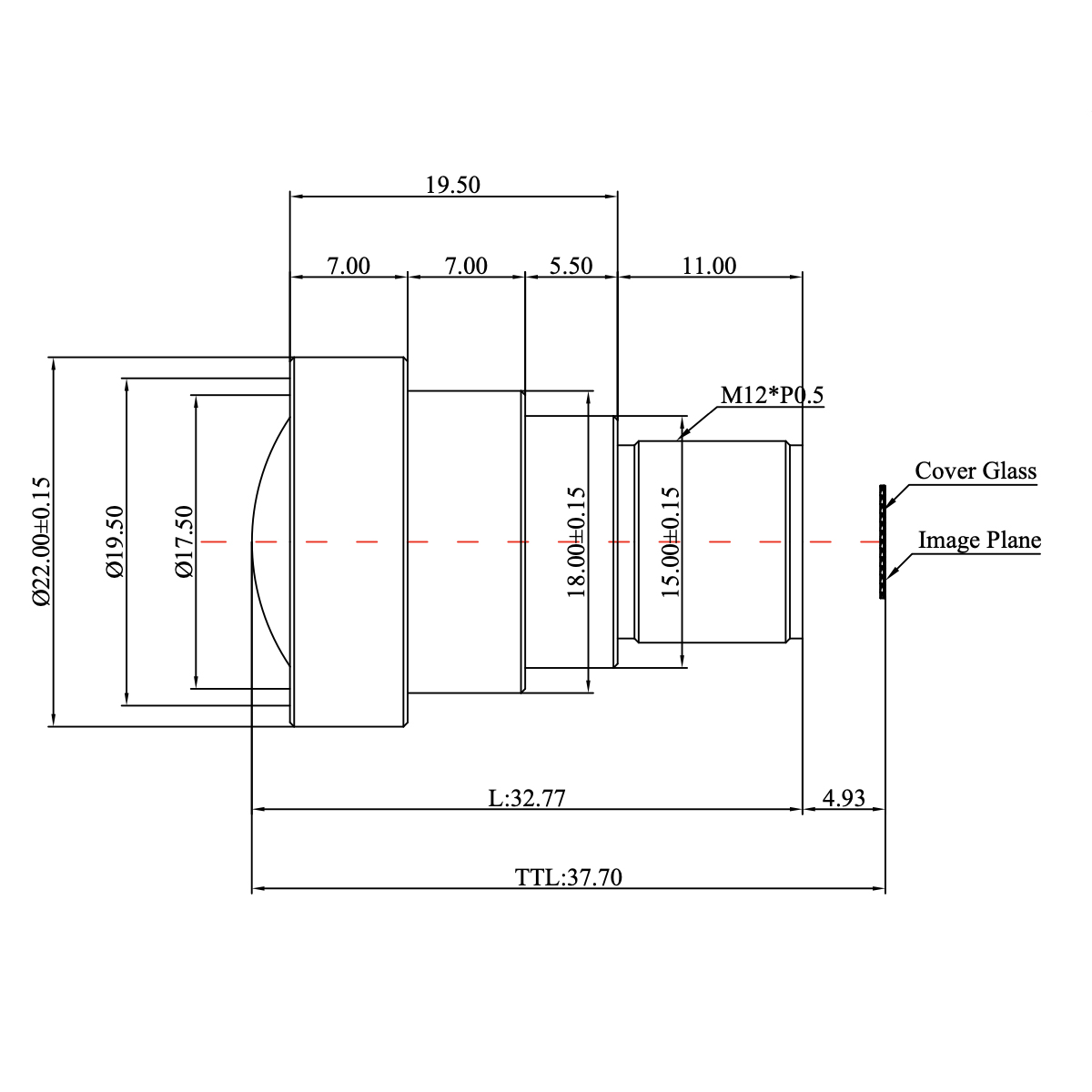

| Dimensions | 22mm (D) x 32.77mm (L) |
| Weight | 14 grammes |
Lens
Lens cap
M12 locking ring
