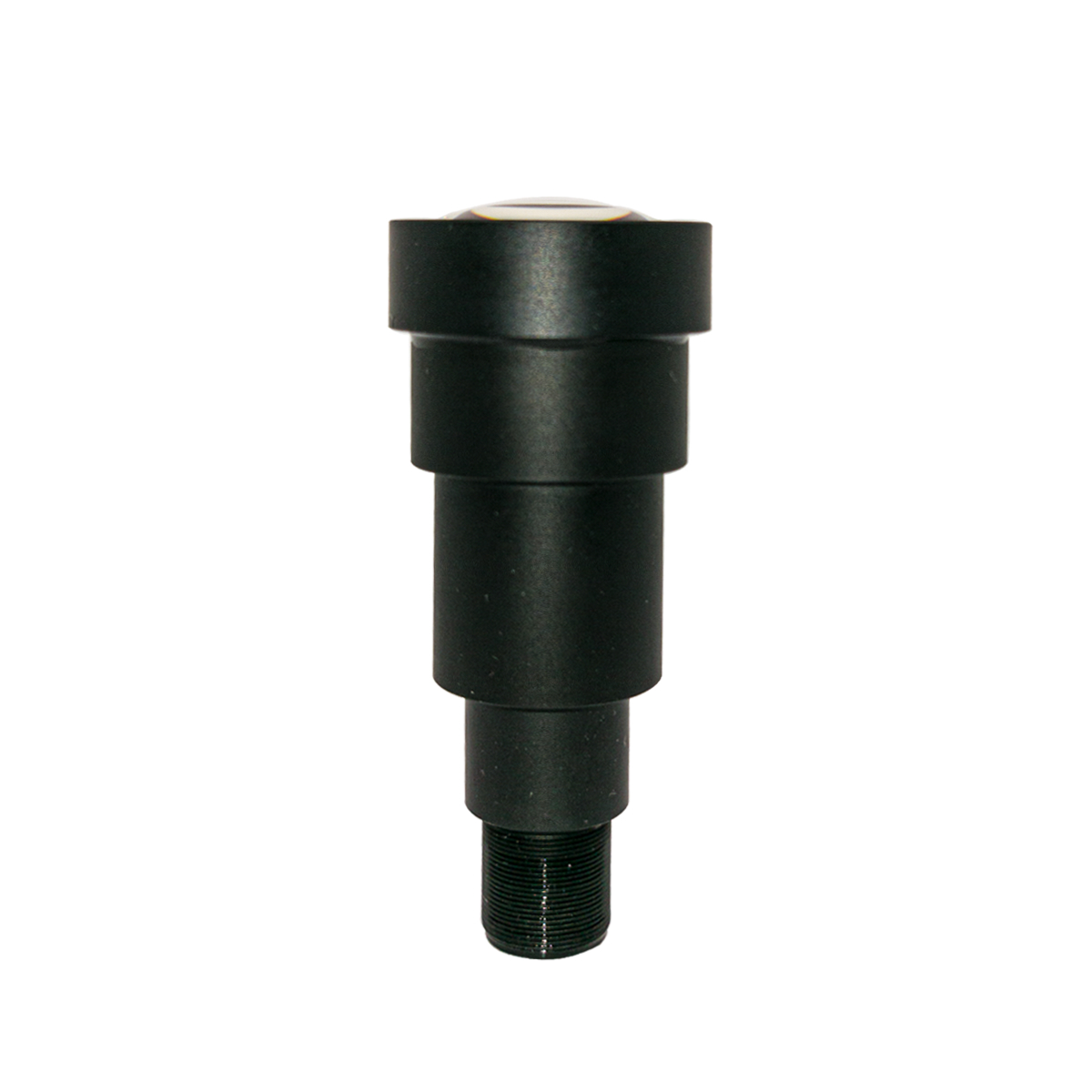

This telephoto S-mount (M12) 8MP lens has a focal length of 70mm and fixed F3.5 iris. It achieves a 6.25° horizontal angle of view when fitted on 1/1.8″ camera sensors with distortion of <-1.0%..
Design for covert surveillance applications, the lens also works well with Back-Bone modified GoPro cameras also supplied by SeeSense plus other cameras featuring and M12 (S-mount). The lens is great for general shooting as well as specialist broadcast, film and industrial applications where a telephoto view is required.
IN STOCK
€95.00 (€116.85 including VAT)
This telephoto S-mount (M12) 12MP lens has a focal length of 70mm. It features a 6.25° horizontal angle of view when fitted on 1/1.8″ camera sensors.
The lens is perfect for covert surveillance applications but also has been used for natural history and in sports broadcast situation. It works well with Back-Bone modified GoPro cameras also supplied by SeeSense plus other cameras featuring and M12 (S-mount).
The lens is great for general shooting as well as specialist broadcast, film and industrial applications where a telephoto view is required. This lens has an IR cut filter fitted but is available as a No IR option.
| Weight | 0.1 kg |
|---|---|
| Dimensions | 10.0 × 10.0 × 5.0 cm |
| Iris and Drive | Fixed Iris |
| Lens Type | |
| Mount | S-Mount M12 |
| Resolution | 4K, 8 MP |
| Sensor Size | 1/2.3", 1/2.5", 1/2.7", 1/2.9", 1/2", 1/3", 1/1.8", 1/1.9" |
| Brand | |
| Industries | Film & Broadcast, General Industrial Use, Photography, Research, Medical & Education, Security & Defence |
| Focal Length | 70mm |
| Resolution | 8MP |
| Aperture | F3.5 |
| HFOV | 6.25° x 3.53° 1/1.8″ Horizontal x vertical angle of view |
| Image circle | 9.2mm maximum dimeter 1/1.8″ IMX334 |
| Distortion | <-1.0% |
| MOD | 0.5m |
| Filter | IR Cut Filter fitted (NoIR option available) |
| Format | Suits camera sensors up to 1/1.8″ |
| Mount | M12 (S-mount) |
| Dimensions | 29mm (D) x 69.8mm (L) |
| Weight | 49 grammes |
Lens
Lens cap
M12 locking ring
